Condair DL Hybrid Humidifier

Q: How is water quality ensured during operation of the Condair DL?

The Condair DL uses demineralised water, typically provided by a reverse osmosis system. This prevents mineral deposits, ensures consistent humidification performance, and significantly reduces maintenance efforts.

Q: What control options does the Condair DL offer?

The Condair DL system features an integrated control unit with a touch display and can be seamlessly integrated into modern building management systems (BMS). This allows for easy monitoring, regulation, and maintenance.

Q: What types of applications is the Condair DL best suited for?

The Condair DL is ideal for HVAC systems in hygiene-sensitive environments such as hospitals, museums, laboratories, and office buildings. Its combination of high-performance humidification and certified hygiene makes it a preferred choice in demanding applications.

Get a quote on a DL

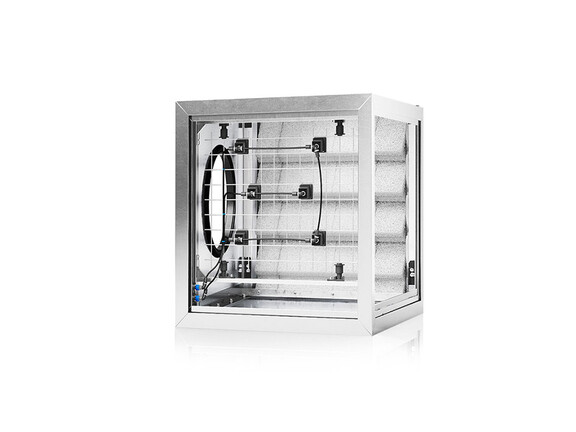

Condair DL

Hybrid Humidifiers

The Condair DL is the next generation of the Condair Dual2—the successful system for adiabatic air humidification. Its hygienic credentials have proven successful in practice and were verified and certified by independent organisations with public responsibility.

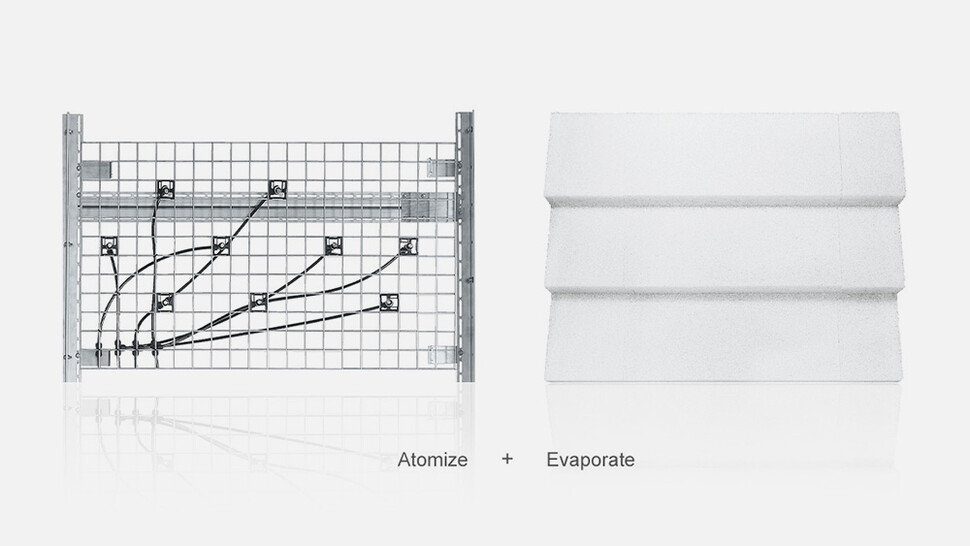

Two adiabatic methods intelligently combined!

The adiabatic humidifier Condair DL relies exclusively on the advantages of the two types of humidification, atomization and evaporation. This provides a sustainable solution to central problems that can arise when these techniques are used in isolation.

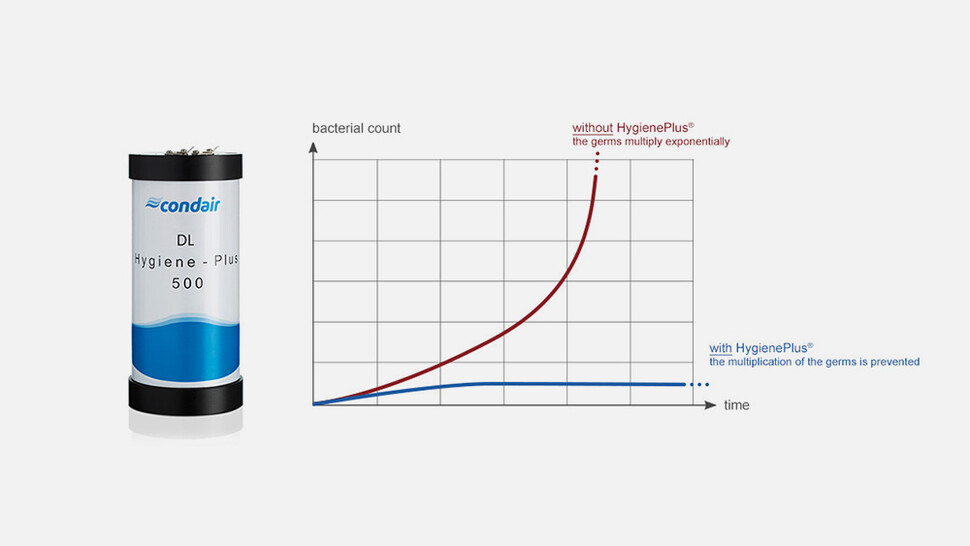

HygienePlus® method

The HygienePlus® process prevents the formation and spread of germs and pathogens in air conditioning systems and humidifiers. Since even drinking water is not germ-free, biofilms and microorganisms can otherwise form there. Through targeted hygiene measures, the process ensures clean, healthy air at all times.

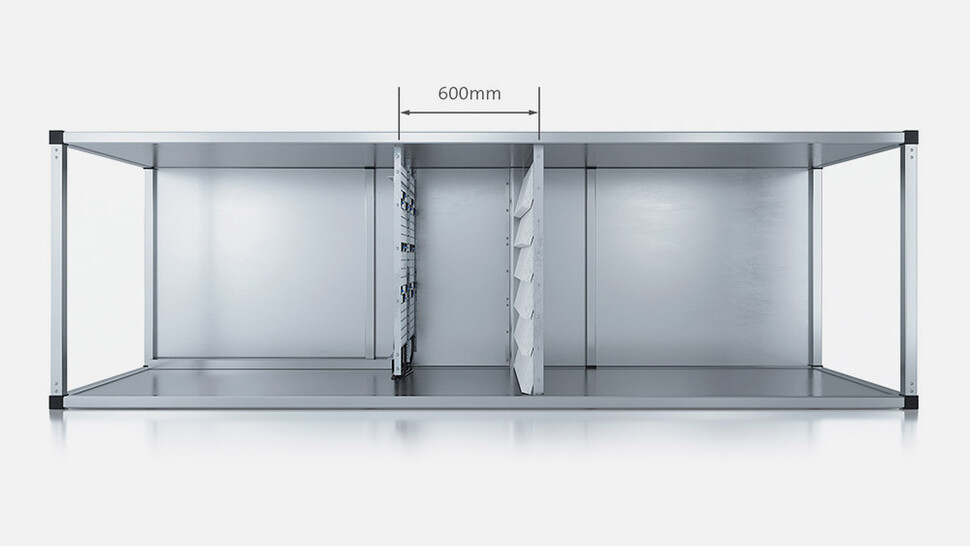

Extremely short length

Low-pressure systems generally get by with a significantly shallower design depth than high-pressure humidifiers. Due to the arrangement of the evaporator ceramics so that they cover the full area, and as a result of the spray cone of the molecular diffuser nozzles, the entire overall depth of the Condair DL can be reduced to up to 600 mm.

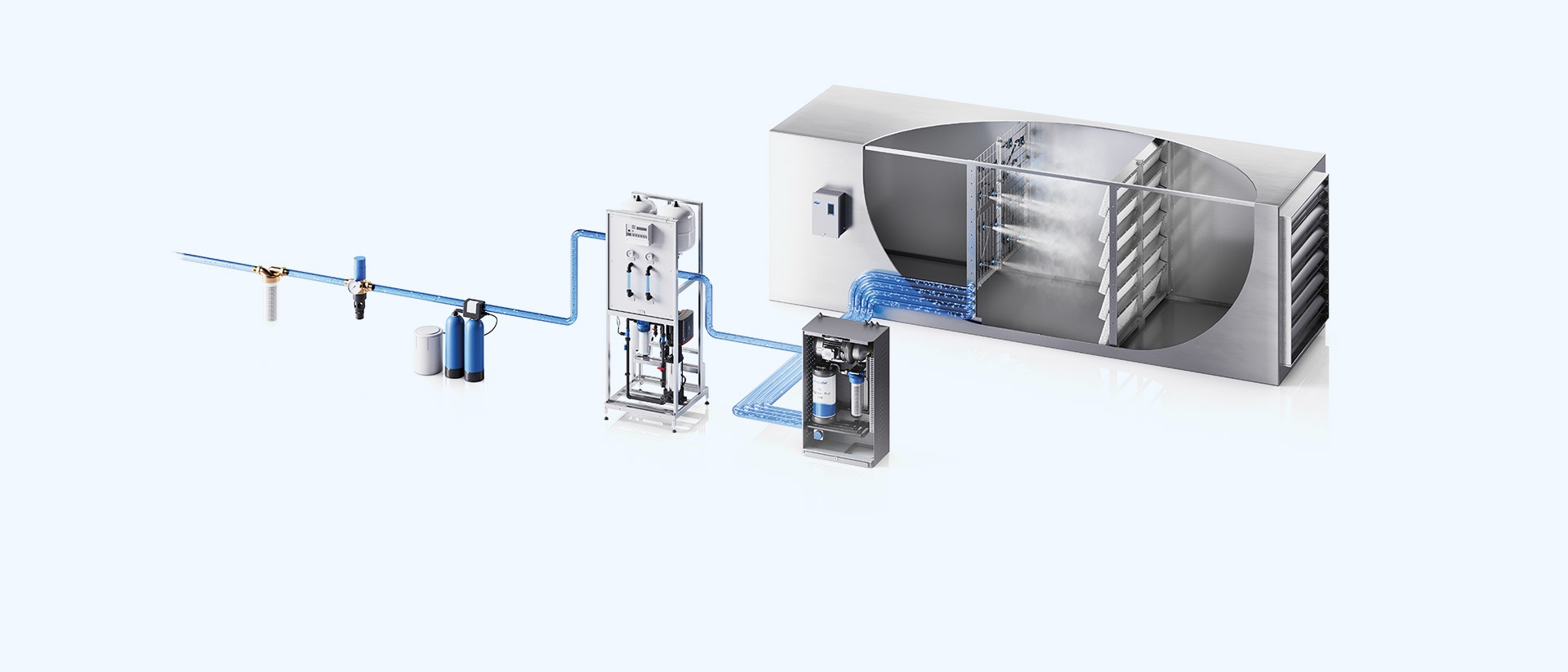

System structure Hybrid humidifier

Professional planning is the basis for functional quality and energy efficiency. We are happy to assist you in the planning phase.

System structure Hybrid humidifier

Fine filter

System structure Hybrid humidifier

Pipe disconnector

System structure Hybrid humidifier

Softener

System structure Hybrid humidifier

Reverse osmosis

System structure Hybrid humidifier

Control unit

System structure Hybrid humidifier

Hygieneplus®

System structure Hybrid humidifier

Atomizer unit

System structure Hybrid humidifier

Evaporator unit

Downloads

Frequently asked questions

How is water quality ensured during operation of the Condair DL?

What control options does the Condair DL offer?

What types of applications is the Condair DL best suited for?

Discover Condair in action

Projects and references

ADAC Center, Munich

In March 2012, ADAC's new headquarters officially opened for business after six years of construction. Since December 2011, the office has been home to some 2,400 employees in over 100 professions, who were previously spread out across seven different locations. Bringing them all together in one place will encourage innovative ways of working, improve the speed of business processes, and simplify member services.

BMW Welt

BMW World is located in an important location in Munich between the BMW four-cylinder and the Olympic Park. It was opened in October 2007 and has since provided space for exhibitions, the delivery of new vehicles and events.The open design was developed by the architects Himmelb(l)au and is characterized by the striking double cone at the southern tip of the building. This has a diameter of 40 meters, is around 30 meters high andmade of 680 tons of steel. Condair DL hybrid humidifiers are used to provide visitors and employees with a pleasant and hygienic room climate.

Paul Klee Museum, Bern, Switzerland

The Kunstmuseum, Zentrum Paul Klee, is located in Bern, Switzerland, in the immediate vicinity of the Schlosshalde cemetery, where Paul Klee's grave can also be found. The building is dominated by curved arches that blend harmoniously into the surrounding hilly landscape. It houses the comprehensive work of the Paul Klee Foundation and reflects the artist™s complexity through the division into three hills. The North Hill is dedicated to practical art education, conferences, and workshops. The Central Hill is used for collection presentation and temporary exhibitions, the South Hill for research and administration. Condair's DL hybrid air humidifiers create an optimum indoor climate for visitors and the sensitive works of art.

Foundation Michalski, Switzerland

An ideal work site for literature and literati - that was the vision that Vera and Jan Michalski wanted to achieve with the Maison d'ecriture. It is located at the foot of the Vaud Jura Mountains, in the Bois Ditsert in Montricher, with a view of Lake Geneva and the Alps. The site was chosen for its scenic beauty and the quiet surroundings that are supposed to have a positive effect on writers' activities and inspire them to reflect. This location has a very special appeal and a unique atmosphere. Architects V. Mangeat and P. Wahlen were tasked with designing the architecture of the object. They created several buildings for the foundation's numerous activities that fit perfectly into the surrounding nature and form a kind of settlement. Individual living spaces for authors, a dining room, a recreation room, a large library for research, a room with modular space for exhibitions and an auditorium for all kinds of events promise numerous encounters and brisk cultural exchange. Condair DL hybrid humidifiers ensure comfortable atmospheric humidity.

Rijksmuseum, Netherlands

The Rijksmuseum is one of the world's finest art museums with over 1.5km of galleries and artworks by Rembrandt, Vermeer and Van Gogh. The Condair DL hybrid humidifier is maintaining the ideal humidity for the preservation of paintings such as The Night Watch, The Milkmaid and The Merry Drinker.

ARoS Aarhus Art Museum, Aarhus

Condair DL hybrid humidifiers ensure optimal indoor humidity at The ARoS Aarhus Art Museum, protecting over 1,100 paintings and 400 sculptures.

The Louvre Museum

The Louvre Museum is a museum located in the Louvre Palace in the 1st arrondissement of Paris, France. It houses some of the most famous works of Western art, including the Mona Lisa and the Venus de Milo.
With 72,735 m² of rooms and galleries, it is the largest art museum in the world, ahead of the Hermitage (66,842 m²) in Russia and the National Museum of China (65,000 m²).

Various Condair humidity control technologies (Condair DL, RS, ME, DC) help to maintain the ideal room humidity for the preservation of the exhibits and the well-being of staff and visitors.

Precise humidity protects millions of books at Bibliothèque Nationale de France

As one of the most recognisable and symbolically powerful architectural landmarks of contemporary Paris, the Bibliothèque nationale de France (Site François-Mitterrand) sets new standards in cultural design, monumental scale and preservation of knowledge. Condair is proud to contribute to this visionary institution with advanced hybrid humidification solutions that protect priceless collections, ensure visitor comfort and guarantee energy-efficient climate control.
Preserving millions of books, manuscripts, maps and artefacts demands rigorously stable climatic conditions. Optimal relative humidity “crucial for preventing damage to paper, bindings and other organic materials“ is reliably maintained by Condair DL hybrid humidifiers.

Smithsonian

Founded in 1846, the Smithsonian is the world's largest museum and research complex, consisting of 19 museums and galleries, the National Zoological Park, and nine research facilities. Condair EL electrode steam humidifiers and Condair DL hybrid humidifiers are maintaining the ideal humidity for preserving artifacts and exhibits. The Condair DL provides very accurate humidity control at +2%RH, whilst offering exceptional hygiene management, with a combination of reverse osmosis water filtration, flush and drain cycles and a patented Hygiene Plus silver ionisation system.

Baloise Park, Basel

Baloise Park forms an area with three buildings on which the Baloise insurance group is headquartered. The complex offers 1,300 modern office workstations, of which 700 are used for Baloise employeesand the rest are rented out. The tallest building in Baloise Park is the tower in the west, which is one of the tallest buildings in Basel at 89 meters.Part of this tower houses the 5-star Superior Hotel Mövenpick comprising 264 rooms and an exquisite bar with sun terrace.Condair steam humidifiers ensure healthy room air humidity.

United States Department of Agriculture

University of Maryland Prince George™s Ambulatory Care and Trauma Unit

UM Prince George's Hospital Center is an acute care teaching hospital and regional referral center. They are committed to sustaining an innovative environment for their providers and students to help them deliver exceptional patient care.

Memorial Sloan Kettering

Memorial Sloan Kettering Cancer Centre is the largest and longest-established private cancer centre in the world. Located in New York's Manhattan borough on the Upper East Side, the building has 22 floors totalling 72,000 m2 of floor space. Its origins date back to 1884. The facility is named after the two former General Motors managers Alfred P. Sloan and Charles F. Kettering, who became involved with the facility in the 1940s. The 500-bed oncology clinic is affiliated with New York Hospital and has specialized teams for hepatobiliary surgery, thoracic surgery, and plastic surgery. The research department is part of the faculty at Cornell University, researching treatment options for oncological diseases. Condair hybrid humidifiers ensure hygienic humidity at Memorial Sloan Kettering Cancer Center.

University of Ottawa STEM Building

The University of Ottawa is a top-tier research institution located in the center of the Canadian capital overlooking the Rideau Canal. The newly built STEM Complex features unique lab facilities for world-class physics research.Mechanical and heavy-duty labs for research in building physics take center stage. The building's sustainability is also impressive. An innovative glass rain screen was constructed as the building envelope, which also minimizes the building's energy loss. Waste heat from a nearby heating plant is used for heating, allowing the building to achieve a net-zero energy footprint even during the long, harsh Canadian winters and qualify for LEED Gold.Condair hybrid humidifiers ensure healthy and comfortable room air humidity.

Condair ensures the ideal humidity to preserve the Jewish Museum's collection

The Jewish Museum Munich relies on a Condair DL hybrid humidifier to maintain a controlled indoor environment that protects its diverse collection of cultural and historical objects. With three levels of gallery space dedicated to permanent and temporary exhibitions, the museum requires dependable humidity management to ensure artefacts remain in optimal condition throughout the year.
